Built For Performance, Comfort, And Efficiency

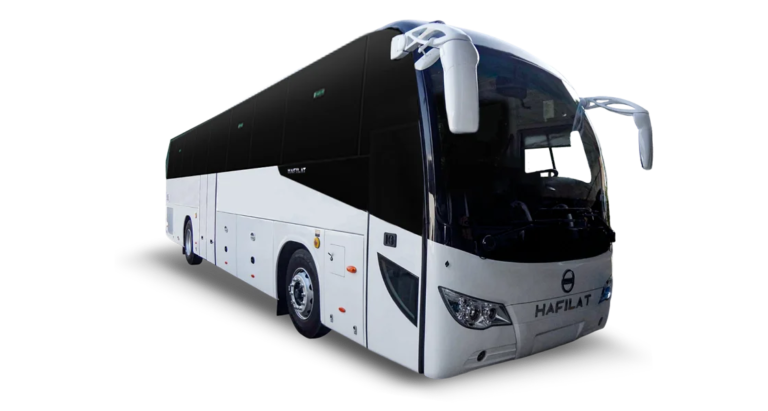

| Dimension and Weight | ||
|---|---|---|
|
Overall Dimensions (mm) |
|
11,995 mm x 2,500 mm x 3,600 mm |
|
Wheel Track Front/Rear (mm) |
|
2,060 mm / 1,860 mm |
|
Wheelbase (mm) |
|
6,000 mm |
|
Overhang Front/Rear (mm) |
|
9640 / 3355 |
|
Passenger seats |
|
49 seats + 1 Driver + 1 Guide |
|
GVW (Gross Vehicle Weight) |
|
Not Specified |
| Engine & Drivetrain | ||
|---|---|---|
|
Engine Model |
gggggggggggggggggggggggggggggggggggggggggggggggggg Dimension and Weight hdshdhasdgahsdmndbsnmdbasbdhasdbhasbdhadbaskdashdcbmbabfnanfbmafbnsafmabfsabfhvashdfvbmafbhjfbhjbfhjsdbfhbfhadhfbhfbbdhfbhfhbfhadbfabfhjdfbjhfjsdbfhjsbfhjdfbhfjmafkabfkjabskfkasfbjakfbkjasbjasbfjbaskfbaskfbjkasbfjkasbfkabsfkasbfkggggggggggggggggggggggggggggggggggggggggggggggggggg |
ISLe340-40 |
|
Manufacturer |
|
DongFeng Cummins |
|
Engine Position |
|
Rear |
|
Engine Type |
|
6-inline, Common rail, Turbo-charged, inter-cooling |
|
Rated Power |
|
250 KW (340 HP) / 2,200 rpm |
|
Max. Torque (N.m/rpm) |
|
1550 N.m / 1,200 rpm |
|
Displacement |
|
9L |
|
Bore x Stroke (mm) |
|
Not Specified |
|
Fuel Type |
|
Diesel |
|
Emission Standard |
|
Euro IV |
|
Transmission |
|
ZF 6AP1700B Automatic gearbox |
|
Drive |
|
Not Specified |
| Chassis and Running Gear | ||
|---|---|---|
|
Chassis Model |
gggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb Dimension and Weight hdshdhasdgahsdmndbsnmdbasbdhasdbhasbdhadbaskdashdcbmbabfnanfbmafbnsafmabggggggggggfsabfhvashdfvbmafb |
Not Specified |
|
Axles (Permissible Load) |
|
Front: 6.5T, Rear: 13T |
|
Suspension |
|
6-bag air suspension, with ECAS system |
|
Steering |
|
Integral power steering, Bosch 8098 |
|
Brakes (Mechanical) |
|
Front and rear disc brake |
|
Braking System (Auxiliary) |
|
Pneumatic dual-circuit service braking, with air drier, condenser; Energy storage spring parking braking |
|
Retarder |
|
Integrated with automatic gearbox |
|
Auto Slack Adjuster/ABS |
|
ABS/ASA Equipped |
|
Tyres |
|
11R22.5 tubeless radial tyre |
|
Fuel Tank Capacity |
|
400L (steel tank, dual refilling points) / 35L (AdBlue/DEF tank implied) |
|
Electrical System |
|
Battery 180 Ah x 2 (fixed racks); Prestolite generator |
| Body & Interior Features | ||
|---|---|---|
|
Body Structure & Exterior |
hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Dimension and Weight hdshdhasdgahsdmndbsnmdbasbdhasdbhasbdhadbaskdashdcbmbabfnanfbmafbnsafmhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhabfsabfhvashdfvbmafb |
Semi-loading body structure; High quality solid paint; Flasher Warning Lamps (Two Red and Two Amber) above the front and rear windshield; High-mounted brake lamp; Reverse buzzer. |
|
Doors & Windows |
|
Passenger Door: Front and mid pneumatic out-swing door, with remote control. Front Windshield: Not Specified. Side Windows: Grey tinted (30% clear) tempered glass, all fixed except for driver window. |
|
Interior Trim & Floor |
|
Floor: Bamboo plywood floor / Wear-resisting floor lining. Interior Trim: Luxury interior moulding trim; Without luggage racks. |
|
Seating |
|
Passenger Seats: 49 adjustable seats, leather seat material, 2-point safety belts, net bags, table tray. Driver Seat: Air damping with foot rest. Guide Seat: Equipped. |
|
Climate Control |
|
A/C System: SONGZ air-conditioner, cooling capacity: 32,000 Kcal/h. Heater: N/A. Defrost System: Windshield glass defroster (170W). |
|
Safety & Emergency |
|
Fire Extinguishers: Engine Compartment (3 cylindric auto) with temperature alarm; Cabin (2 pieces 4KG). Emergency Tools: 6 pieces safety hammer (with sound-light alarm); First-aid kit box; Reflective triangle; Drivers tool box. Exits: 2 roof hatch (with ventilator fan). |
|
Lighting |
|
Cabin lamp: 4 pieces of roof lamps, step lamps. Saloon Area: Two Strip LED Lights on LHS & RHS. Destination Board: LED Equipped. |
|
Driver Aids |
|
Reverse Monitor (Color); CCTV (500G memory with 4 cameras); CAN instruments; Electric/pneumatic horn. |
|
Miscellaneous |
|
Luggage Compartment: Manual vertical sliding doors. Sunshade/Curtains: Manual windshield rolling blind (driver side only) / All windows curtain. Audio/Video System: Front 19-inch fixed TV and middle 19-inch electric foldable TV, radio, SD card, and USB player. Others: Digital clock (with temperature display); WIFI system. |
| Dimension and Weight | ||
|---|---|---|
|

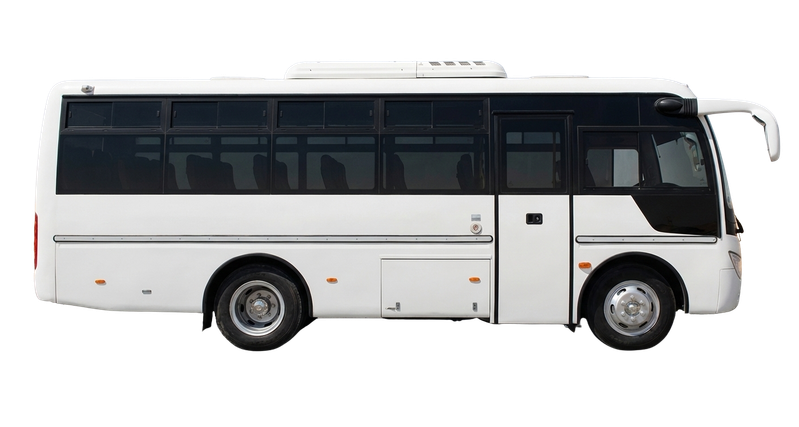

ContentOverall Dimensions (mm) |
|
7,485 mm x 2,350 mm x 3,160 mm (with A/C) |
|
Wheel Track Front/Rear (mm) |
|
1,830 mm / 1,680 mm |
|
Wheelbase (mm) |
|
3,800 mm |
|
Overhang Front/Rear (mm) |
|
1,225 mm / 2,460 mm |
|
Passenger seats |
|
28 seats + 1 Driver |
|
GVW (Gross Vehicle Weight) |
|
Not Specified |
| Engine & Drivetrain | ||
|---|---|---|
|
Engine Model |
gggggggggggggggggggggggggggggggggggggggggggggggggghhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Dimension and Weight hdshdhasdgahsdmndbsnmdbasbdhasdbhasbdhadbaskdashdcbmbabfnanfbmafbnsafmabfsabfhvashdfvbmafbhjfbhjbfhjsdbfhbfhadhfbhfbbdhfbhfhbfhadbfabfhjdfbjhfjsdbfhjsbfhjdfbhfjmafkabfkjabskfkasfbjakfbkjasbjasbfjbaskfbaskfbjkasbfjkasbfkabsfkasbfkggggggggggggggggggggggggggggggggggggggggggggggggggg |
ISF3.8s4154 (105kw) |
|
Manufacturer |
|
Cummins |
|
Engine Position |
|
Front |
|
Engine Type |
|
High pressure common rail, direct injection, turbo-charged, inter-cooling |
|
Rated Power |
|
105 KW (154 HP) / 2,800 rpm |
|
Max. Torque (N.m/rpm) |
|
500 N.m / 1,600-1,900 rpm |
|
Displacement |
|
4.214 L |
|
Bore x Stroke (mm) |
|
102 mm x 120 mm |
|
Fuel Type |
|
Diesel |
|
Emission Standard |
|
Euro IV |
|
Transmission |
|
Six speed manual gearbox |
|
Drive |
|
Not Specified |
| Chassis and Running Gear | ||
|---|---|---|
|
Chassis Model |
ggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggg Dimension and Weight hdshdhasdgahsdmndbsnmdbasbdhasdbhasbdhadbaskdashdcbmbabfnanfbmafbnsafmabggggggggggfsabfhvashdfvbmafb |
Not Specified |
|
Axles (Permissible Load) |
|
Front: 3.5T, Rear: 6.5T |
|
Suspension |
|
Multi-leaf spring, front anti-roll bar |
|
Steering |
|
Power Steering |
|
Brakes (Mechanical) |
|
Front / rear drum-type braking |
|
Braking System (Auxiliary) |
|
Pneumatic dual-circuit service braking, with air drier; Energy storage spring parking braking |
|
Retarder |
|
No |
|
Auto Slack Adjuster/ABS |
|
Equipped |
|
Tyres |
|
7.5R20 radial tyres with tube, small wheel hub cover |
|
Fuel Tank Capacity |
|
120L |
|
Electrical System |
|
Battery 120 Ah x 2; Prestolite generator 100A |
| Body & Interior Features | ||
|---|---|---|
|
Body Structure & Exterior |
hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Dimension and Weight hdshdhasdgahsdmndbsnmdbasbdhasdbhasbdhadbaskdashdcbmbabfnanfbmafbnsafmhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhabfsabfhvashdfvbmafb |
Semi-loading body structure; Reinforced fiberglass front/rear wall panel; High quality solid paint; Flasher warning lamps (Two red and two amber) above front and rear windshields; Side reflective stripe; Stop arm on the left. |
|
Doors & Windows |
|
Passenger Door: Pneumatic out-swing door, with foldable step. Driver Door: Stamping molding. Front Windshield: Not Specified. Side Windows: Green tinted tempered glasses, upper sliding, lower fixed glass, aluminium frame. |
|
Interior Trim & Floor |
|
Floor: Flat floor / grey wear-resisting floor lining. Interior Trim: Luxury A/C trim, with double luggage shelf. |
|
Seating |
|
Passenger Seats: 28 seats, backrest unadjustable, sideward unadjustable, 3-point seat belts. Driver Seat: Mechanical adjustable. Administrator seats: 2 (one left of driver, one middle of rearmost row). |
|
Climate Control |
|
A/C System: Roof-mounted air-conditioner (19,000 Kcal/h). Heater: N/A. Defrost System: Windshield glass defroster (170W). |
|
Safety & Emergency |
|
Fire Extinguishers: Engine compartment (2 cylindric auto), Cabin (1 piece 2KG). Emergency Tools: 4 sound-light alarm emergency hammer; Reflector sign; First aid kit (1 piece). Exits: One roof hatch (with ventilator fan); Safety door. |
|
Lighting |
|
Cabin lamp: 3 interior roof-mounted lamp; Step lamp; High-mount stop lamp. Destination Board: LED, 800x200mm, Arabic and English. |
|
Driver Aids |
|
Reverse monitor (Color); Audio and Video System (MP3 player with radio); 8-routs camera system; CAN bus instrument; Electric horn. |
|
Miscellaneous |
|
Rear Luggage Compartment: Drop design, with volume of 2 CBM. Handrails/Grab Rings: Stainless steel. Sunvisor/Curtains: Manual scroll type. |
| Dimension and Weight | ||
|---|---|---|
|
ContentOverall Dimensions (mm) |
|
8,720 mm x 2,450 mm x 3,350 mm (with A/C) |
|
Wheel Track Front/Rear (mm) |
|
2,020 mm / 1,800 mm |
|
Wheelbase (mm) |
|
4,200 mm |
|
Overhang Front/Rear (mm) |
|
1,790 mm / 2,730 mm |
|
Passenger seats |
|
35 seats + 1 Driver + 1 Guide (2+2 layout)
|
|
GVW (Gross Vehicle Weight) |
|
Not Specified |
| Engine & Drivetrain | ||
|---|---|---|
|
Engine Model |
gggggggggggggggggggggggggggggggggggggggggggggggggghhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh |
ISDe210-40 |
|
Manufacturer |
|
Cummins |
|
Engine Position |
|
Rear |
|
Engine Type |
|
Water-cooling, direct injection, Turbo-charged, inter-cooling |
|
Rated Power |
|
155 KW (210 HP) / 2,200 rpm |
|
Max. Torque (N.m/rpm) |
|
800 N.m / 1,400 rpm |
|
Displacement |
|
6.7L |
|
Bore x Stroke (mm) |
|
Not Specified |
|
Fuel Type |
|
Diesel |
|
Emission Standard |
|
Euro IV |
|
Transmission |
|
QJS6-80 (ZF technology) manual 6 speed, 3-cable shifting |
|
Drive |
|
Not Specified |
| Chassis and Running Gear | ||
|---|---|---|
|
Chassis Model |
gggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggg Dimension and Weight hdshdhasdgahsdmndbsnmdbasbdhasdbhasbdhadbaskdashdcbmbabfnanfbmafbnsafmabggggggggggfsabfhvashdfvbmafb |
Not Specified |
|
Axles (Permissible Load) |
|
Front: 4.2T, Rear: 9T |
|
Suspension |
|
Leaf spring, front and rear stabilizer |
|
Steering |
|
Integral power steering, ZF 8095 |
|
Brakes (Mechanical) |
|
Front and rear drum brake |
|
Braking System (Auxiliary) |
|
Pneumatic dual-circuit service braking, with air drier; Energy storage spring parking braking |
|
Retarder |
|
No |
|
Auto Slack Adjuster/ABS |
|
Haldex Auto Slack Adjuster, Wabco ABS |
|
Tyres |
|
Giti, 8.25R20 tubeless radial tyre |
|
Fuel Tank Capacity |
|
240L |
|
Electrical System |
|
Battery 165 Ah x 2; Prestolite generator |
| Body & Interior Features | ||
|---|---|---|
|
Body Structure & Exterior |
hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhggggggggggggggggggggggggggghhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Dimension and Weight hdshdhasdgahsdmndbsnmdbasbdhasdbhasbdhadbaskdashdcbmbabfnanfbmafbnsafmhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhabfsabfhvashdfvbmafb |
Semi-loading body structure; High quality solid paint (Yellow painted); Knurling protective rail; Front bumper towing device; LED destination board (front door). |
|
Doors & Windows |
|
Passenger Door: Front pneumatic outer-swing door, with foldable step, remote control, and anti-pinch sensor. Emergency Door: Equipped at rear left. Front Windshield: Single, laminated glass. Side Windows: 30% tinted tempered glass, upper sliding, lower fixed. |
|
Interior Trim & Floor |
|
Floor: Bamboo plywood floor / grey wear-resisting floor lining. Interior Trim: Luxury interior moulding trim; integral A/C duct and standard luggage racks. |
|
Seating |
|
Passenger Seats: 35 seats, 2+2 layout, fabric cover, back adjustable, 3-point belt. Driver Seat: Air damping with 3-point belt. Guide Seat: Equipped (for supervisor). |
|
Climate Control |
|
A/C System: SONGZ air-conditioner, cooling capacity: 32,000 Kcal/h, Bitzer compressor. Heater: Integral with A/C. Defrost System: Windshield glass defroster (170W). |
|
Safety & Emergency |
|
Fire Extinguishers: Engine compartment (2 cylindric auto), Cabin (1 piece 5KG). Emergency Tools: 4 pieces safety hammer; reflective triangle; first-aid kit box. Exits: 1 roof hatch (with ventilator fan); Emergency Door at rear left. |
|
Lighting |
|
Cabin lamp: LED lamp strip on the roof; LED step lamps; Reading lamps. |
|
Driver Aids |
|
Video Recorder: 8-channel video recorder. Media System: Mp3 player with radio, with PA system. Others: Digital clock, Electric horn, Reverse buzzer, Driver patrol buzzer. |
|
Miscellaneous |
|
Luggage Compartment Doors: Aluminium, tilting type. Sunshade/Curtains: Manual windshield rolling blind / with curtain. Driver window rolling blind. Spare tire with wheel. Side air intake for engine. |
| Dimension and Weight | ||
|---|---|---|
|

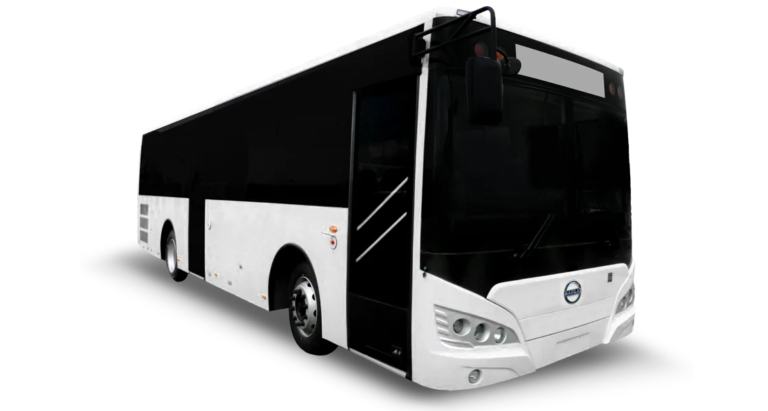

ContentOverall Dimensions (mm) |
|
10,500 mm x 2,500 mm x 3,220 mm (with A/C) |
|
Wheel Track Front/Rear (mm) |
|
2,020 mm / 1,860 mm |
|
Wheelbase (mm) |
|
5,000 mm |
|
Overhang Front/Rear (mm) |
|
2,300 mm / 3,200 mm |
|
Passenger seats |
|
54 seats + 1 Driver (3+2 layout) |
|
GVW (Gross Vehicle Weight) |
|
Not Specified |
| Engine & Drivetrain | ||
|---|---|---|
|
Engine Model |
gggggggggggggggggggggggggggggggggggggggggggggggggg |
ISDe245-41 |
|
Manufacturer |
|
Cummins |
|
Engine Position |
|
Rear |
|
Engine Type |
|
Water-cooling, Common Rail, Turbo-charged, inter-cooling |
|
Rated Power |
|
180 KW (245 HP) / 2,500 rpm |
|
Max. Torque (N.m/rpm) |
|
950 N.m / 1,400 rpm |
|
Displacement |
|
6.7L |
|
Bore x Stroke (mm) |
|
107 x 124 |
|
Fuel Type |
|
Diesel |
|
Emission Standard |
|
Euro IV |
|
Transmission |
|
QJ805 Synchro five speed, 2-cable gearshift mechanism |
|
Drive |
|
Not Specified |
| Chassis and Running Gear | ||
|---|---|---|
|
Chassis Model |
gggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggbbbbbbbb Dimension and Weight hdshdhasdgahsdmndbsnmdbasbdhasdbhasbdhadbaskdashdcbmbabfnanfbmafbnsafmabggggggggggfsabfhvashdfvbmafb |
Not Specified |
|
Axles (Permissible Load) |
|
Front: 5.5T, Rear: 10.3T |
|
Suspension |
|
Leaf spring, with front stabilizer |
|
Steering |
|
Integral power steering, ZF8098 |
|
Brakes (Mechanical) |
|
Front and rear drum brake |
|
Braking System (Auxiliary) |
|
Pneumatic dual-circuit service braking, with air drier; Energy storage spring parking braking |
|
Retarder |
|
No |
|
Auto Slack Adjuster/ABS |
|
Auto Slack Adjuster, ABS |
|
Tyres |
|
275/70R22.5 tubeless radial tyre |
|
Fuel Tank Capacity |
|
240L |
|
Electrical System |
|
Battery 165 Ah x 2, sliding rack; Prestolite generator |
| Body & Interior Features | ||
|---|---|---|
|
Body Structure & Exterior |
hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Dimension and Weight hdshdhasdgahsdmndbsnmdbasbdhasdbhasbdhadbaskdashdcbmbabfnanfbmafbnsafmhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhabfsabfhvashdfvbmafb |
Semi-loading, 4 steps body structure; High quality solid paint; Knurling protective rail; Manual rearview mirrors; Stop arm on the left; Flash warning lamps (2 yellow + 2 red). |
|
Doors & Windows |
|
Passenger Door: Front pneumatic inner-swing single door (with Air Curtain above). Front Windshield: One piece, with laminated glass. Rear Windshield: One piece, all black tinted. Side Windows: Grey tinted (10% transparency) tempered glass, upper sliding part less than 7cm. |
|
Interior Trim & Floor |
|
Floor: Bamboo plywood floor / grey wear-resisting floor lining. Interior Trim: Side roof PVC moulding trim. |
|
Seating |
|
Passenger Seats: 54 seats, 3+2 arrangement, unadjustable back, 3-point seat belts, Rexine cover. Driver Seat: Mechanical adjustable. Guide Seat: Without. |
|
Climate Control |
|
A/C System: SONGZ air-conditioner, cooling capacity: 36,000 Kcal/h, Bitzer compressor (Both heating and cooling). Heater: Integrated with A/C. Defrost System: Hot air blower for front windshield, and rear electric heating glass. |
|
Safety & Emergency |
|
Fire Extinguishers: Engine compartment (3 cylindric auto), Cabin (2 pieces 5KG). Emergency Tools: 4 pieces safety hammer; reflective triangle; first-aid kit box. Exits: 2 roof hatch (without ventilator fan); Emergency Exit on the left. |
|
Lighting |
|
Cabin lamp: 5 pieces rectangular interior roof lamps, step lamps. |
|
Driver Aids |
|
Video Recorder: 8-channel video recorder, 500G hard disk. Media System: Mp3 player with radio, with microphone. Others: Digital clock, Electric horn, Reverse buzzer, Driver patrol buzzer, TPMS system. |
|
Miscellaneous |
|
Luggage Rack: Equipped for both sides. Sunshade/Curtains: Manual windshield rolling blind / Without windows curtain (Driver window rolling blind/without side curtain). Handrails/Grab Rings: N/A. Spare tire with wheel. |

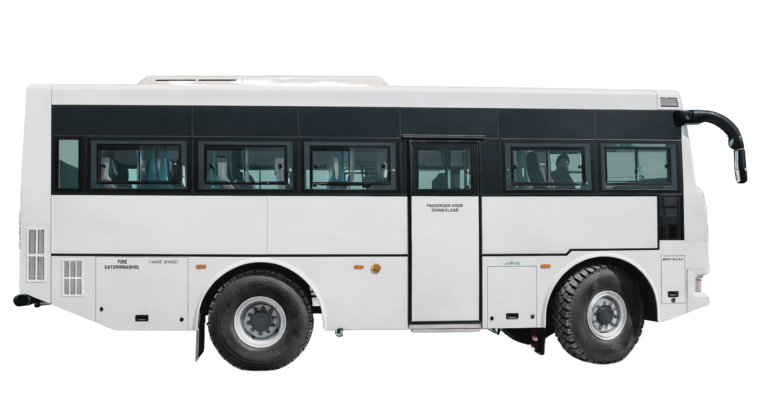

| Dimension and Weight | ||
|---|---|---|
|

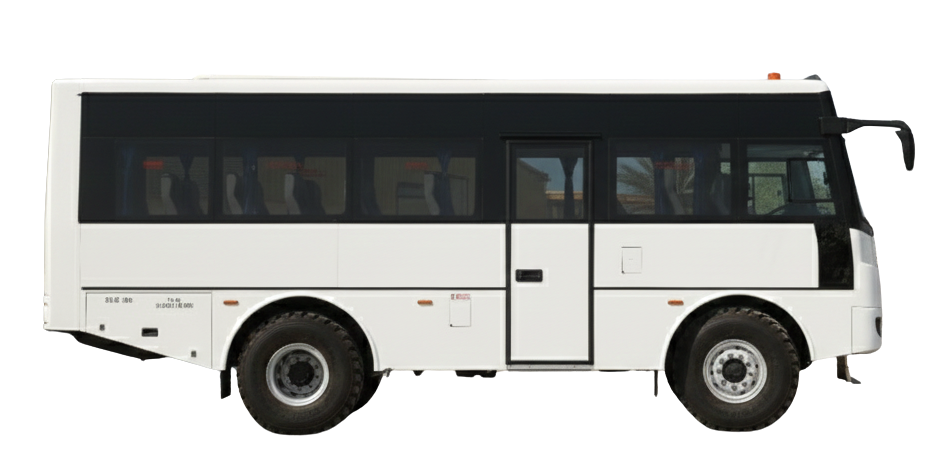

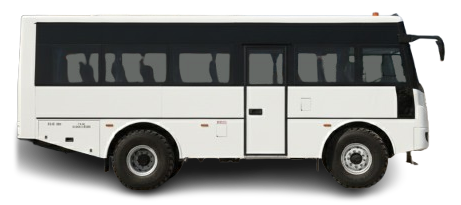

ContentOverall Dimensions (mm) |
|
8,750 mm x 2,500 mm x 3,540 mm (approx.) |
|
Wheel Track Front/Rear (mm) |
|
2,058 mm / 2,043 mm |
|
Wheelbase (mm) |
|
4,150 mm |
|
Overhang Front/Rear (mm) |
|
Not Specified |
|
Passenger seats |
|
32 seats + 1 Driver |
|
GVW (Gross Vehicle Weight) |
|
15 Ton (5.7T Front / 10T Rear) |
| Engine & Drivetrain | ||
|---|---|---|
|
Engine Model |
gggggggggggggggggggggggggggggggggggggggggggggggggg |
IVECO Tector F4A E28 |
|
Manufacturer |
|
Iveco |
|
Engine Position |
|
Not Specified |
|
Engine Type |
|
Turbocharged and intercooled 24-valve four-stroke diesel |
|
Rated Power |
|
205 KW (280 HP) @ 2,500 rpm |
|
Max. Torque (N.m/rpm) |
|
950 Nm @ 1,250-2,100 rpm |
|
Displacement |
|
5.88 litres |
|
Bore x Stroke (mm) |
|
102 x 120mm |
|
Fuel Type |
|
Diesel |
|
Emission Standard |
|
Euro V |
|
Transmission |
|
Manual |
|
Drive |
|
4×4 |
| Chassis and Running Gear | |
|---|---|
|
Chassis Model |
Iveco ML 150E 28WS Chassis |
|
Axles (Permissible Load) |
5.7 Ton (Front) / 10 Ton (Rear) |
|
Suspension |
Not Specified |
|
Steering |
Left Hand Drive (LHD) |
|
Brakes (Mechanical) |
Drum (Front / Rear) |
|
Braking System (Auxiliary) |
Not Specified |
|
Retarder |
Not Specified |
|
Auto Slack Adjuster/ABS |
Not Specified |
|
Tyres |
14R20 |
|
Fuel Tank Capacity |
Not Specified |
|
Electrical System |
2x Battery 12V/110 Ah |
| Body & Interior Features | ||
|---|---|---|
|
Body Structure & Exterior |
hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Dimension and Weight hdshdhasdgahsdmndbsnmdbasbdhasdbhasbdhadbaskdashdcbmbabfnanfbmafbnsafmhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhabfsabfhvashdfvbmafb |
Semi-loading body structure, Steel body, overall anticorrosion treatment. Front/rear caps (fiberglass), side panels (3mm Aluminium sheet), one piece fiberglass roof, side locker doors (aluminium). Body Color: White. |
|
Doors & Windows |
|
Single pneumatic plug type entrance door (offside). Front Windshield: One piece laminated green tinted glass, electric wiper. Side Windows: Double slider, tempered tinted glass. Emergency window on each side. |
|
Interior Trim & Floor |
|
Floor: Marine plywood with wear-resisting floor lining. Trim: Internal AC roof ducting/racks (aluminium/fabric), side/roof paneling (3mm ACP). |
|
Seating |
|
Passenger: Standard fixed back, 2×2 distribution, 3-point seat belts, fabric covered. Driver: Original Iveco chassis cab seat. |
|
Climate Control |
|
A/C System: 35 kW unit with independent powerpack. |
|
Safety & Emergency |
|
Fire Extinguishers: Two ABC DCP (2kg). Emergency Tools: Five window hammers w/ seatbelt cutter, One warning triangle, One first aid kit. Roof Hatch: One provided. |
|
Lighting |
|
Saloon Area: Two strip LED lights (LHS & RHS). Cabin: Rectangular roof lamps, step lamps. Additional: Two top dome LED lamps (front/rear), lighted rear license plate holder. |
|
Driver Aids |
|
Reverse monitor, Electric horn, Electric windshield wiper/washer. |
|
Miscellaneous |
|
Spare tire carrier in the rear. Handrails: Entrance modesty screen and roof handrail. Sign Writing: As per the customer’s choice. |
| Dimension and Weight | ||
|---|---|---|
|
ContentOverall Dimensions (mm) |
|
8,600 mm x 2,500 mm x 3,500 mm (approx.) |
|
Wheel Track Front/Rear (mm) |
|
Not Specified |
|
Wheelbase (mm) |
|
4,500 mm |
|
Overhang Front/Rear (mm) |
|
Not Specified |
|
Passenger seats |
|
34 seats + 1 Driver |
|
GVW (Gross Vehicle Weight) |
|
18 Ton (7.5T Front / 11.2T Rear) |
| Engine & Drivetrain | ||
|---|---|---|
|
Engine Model |
gggggggggggggggggggggggggggggggggggggggggggggggggg |
Not Specified |
|
Manufacturer |
|
MAN |
|
Engine Position |
|
Rear |
|
Engine Type |
|
Not Specified |
|
Rated Power |
|
184 kW (250 PS / 280 HP) |
|
Max. Torque (N.m/rpm) |
|
Not Specified |
|
Displacement |
|
Not Specified |
|
Bore x Stroke (mm) |
|
Not Specified |
|
Fuel Type |
|
Not Specified |
|
Emission Standard |
|
Euro IV |
|
Transmission |
|
Manual Gearbox |
|
Drive |
|
4×4 |
| Chassis and Running Gear | ||
|---|---|---|
|

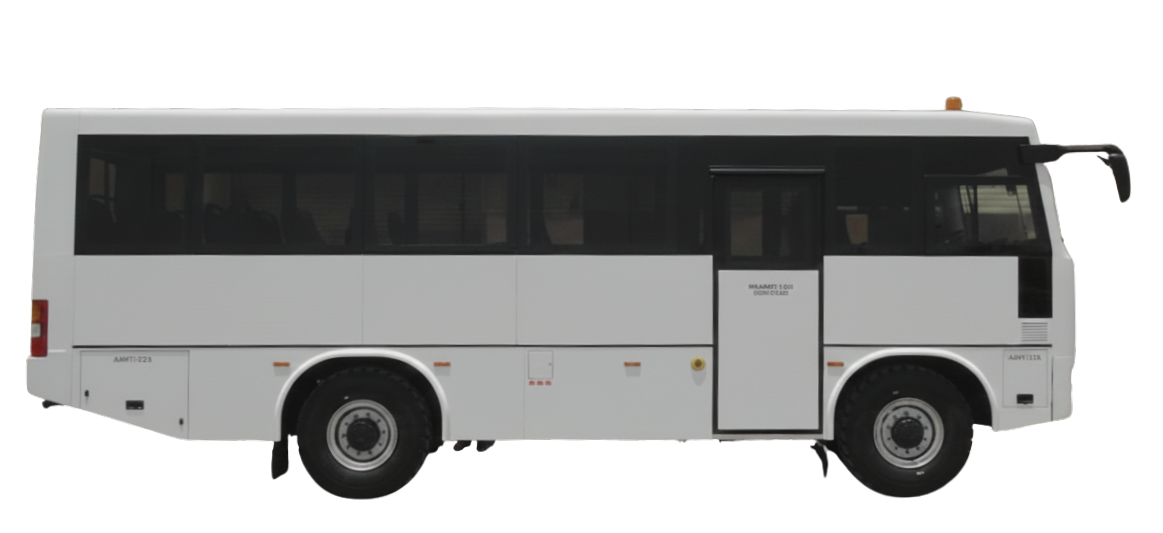

Chassis Model |
gggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb |
TGM 18.250 |
|
Axles (Permissible Load) |
|
7.5 Ton (Front) / 11.2 Ton (Rear) |
|
Suspension |
|
Not Specified |
|
Steering |
|
Left Hand Drive (LHD) |
|
Brakes (Mechanical) |
|
Drum (Front / Rear) |
|
Braking System (Auxiliary) |
|
Not Specified |
|
Retarder |
|
Not Specified |
|
Auto Slack Adjuster/ABS |
|
Not Specified |
|
Tyres |
|
395/85R20 |
|
Fuel Tank Capacity |
|
Not Specified |
|
Electrical System |
|
2x Battery 12V/150 Ah |
| Body & Interior Features | ||
|---|---|---|
|
Body Structure & Exterior |
hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh |
Semi-loading body structure, Steel body, overall anticorrosion treatment. Front/rear caps (fiberglass), side panels (3mm Aluminium sheet), one piece fiberglass roof, side locker doors (aluminium). Body Color: White. |
|
Doors & Windows |
|
Single pneumatic plug type entrance door (offside). Front Windshield: One piece laminated green tinted glass, electric wiper. Side Windows: Double slider, tempered tinted glass. Emergency window on each side. |
|
Interior Trim & Floor |
|
Floor: Marine plywood with wear-resisting floor lining. Trim: Internal AC roof ducting/racks (aluminium/fabric), side/roof paneling (3mm ACP). |
|
Seating |
|
Passenger: Standard fixed back, 2×2 distribution, 3-point seat belts, fabric covered. Driver: Original MAN chassis cab seat. |
|
Climate Control |
|
A/C System: 35 kW unit with independent powerpack. |
|
Safety & Emergency |
|
Fire Extinguishers: Two ABC DCP (2kg). Emergency Tools: Five window hammers w/ seatbelt cutter, One warning triangle, One first aid kit. Roof Hatch: One provided. |
|
Lighting |
|
Saloon Area: Two strip LED lights (LHS & RHS). Cabin: Rectangular roof lamps, step lamps. Additional: Two top dome LED lamps (front/rear), lighted rear license plate holder. |
|
Driver Aids |
|
Reverse monitor, Electric horn, Electric windshield wiper/washer. |
|
Miscellaneous |
|
Spare tire carrier in the rear. Handrails: Entrance modesty screen and roof handrail. Sign Writing: As per the customer’s choice. |
| Dimension and Weight | ||
|---|---|---|
|
ContentOverall Dimensions (mm) |
|
8,500 mm x 2,500 mm x 3,540 mm (approx.) |
|
Wheel Track Front/Rear (mm) |
|
Not Specified |
|
Wheelbase (mm) |
|
4,160 mm |
|
Overhang Front/Rear (mm) |
|
Not Specified |
|
Passenger seats |
|
29 seats + 1 Driver |
|
GVW (Gross Vehicle Weight) |
|
17.1 Ton (6.1T Front / 11T Rear) |
| Engine & Drivetrain | ||
|---|---|---|
|
Engine Model |
gggggggggggggggggggggggggggggggggggggggggggggggggg |
Not Specified |
|
Manufacturer |
|
Mercedes-Benz |
|
Engine Position |
|
Not Specified |
|
Engine Type |
|
Not Specified |
|
Rated Power |
|
188 kW (255 PS) @ 2,200 rpm |
|
Max. Torque (N.m/rpm) |
|
Not Specified |
|
Displacement |
|
Not Specified |
|
Bore x Stroke (mm) |
|
Not Specified |
|
Fuel Type |
|
Not Specified |
|
Emission Standard |
|
Euro V |
|
Transmission |
|
Manual Gearbox |
|
Drive |
|
4×4 |
| Chassis and Running Gear | ||
|---|---|---|
|
Chassis Model |
gggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb |
Not Specified |
|
Axles (Permissible Load) |
|
Front: 6.5T, Rear: 13T |
|
Suspension |
|
Not Specified |
|
Steering |
|
Left Hand Drive (LHD) |
|
Brakes (Mechanical) |
|
Drum (Front / Rear) |
|
Braking System (Auxiliary) |
|
Not Specified |
|
Retarder |
|
Not Specified |
|
Auto Slack Adjuster/ABS |
|
Not Specified |
|
Tyres |
|
14R20 |
|
Fuel Tank Capacity |
|
Not Specified |
|
Electrical System |
|
2x Battery 12V/100 Ah |
| Body & Interior Features | ||
|---|---|---|
|
Body Structure & Exterior |
hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh |
Semi-loading body structure, Steel body, overall anticorrosion treatment. Front/rear caps (fiberglass), side panels (3mm Aluminium sheet), one piece fiberglass roof, side locker doors (aluminium). Body Color: White. |
|
Doors & Windows |
|
Single pneumatic plug type entrance door (offside). Front Windshield: One piece laminated green tinted glass, electric wiper. Side Windows: Double slider, tempered tinted glass. Emergency window on each side. |
|
Interior Trim & Floor |
|
Floor: Marine plywood with wear-resisting floor lining. Trim: Internal AC roof ducting/racks (aluminium/fabric), side/roof paneling (3mm ACP). |
|
Seating |
|
Passenger: Standard fixed back, 2×2 distribution, 3-point seat belts, fabric covered. Driver: Original Mercedes chassis cab seat. |
|
Climate Control |
|
A/C System: 35 kW unit with independent powerpack. |
|
Safety & Emergency |
|
Fire Extinguishers: Two ABC DCP (2kg). Emergency Tools: Five window hammers w/ seatbelt cutter, One warning triangle, One first aid kit. Roof Hatch: One provided. |
|
Lighting |
|
Saloon Area: Two strip LED lights (LHS & RHS). Cabin: Rectangular roof lamps, step lamps. Additional: Two top dome LED lamps (front/rear), lighted rear license plate holder. |
|
Driver Aids |
|
Reverse monitor, Electric horn, Electric windshield wiper/washer. |
|
Miscellaneous |
|
Spare tire carrier in the rear. Handrails: Entrance modesty screen and roof handrail. Sign Writing: As per the customer’s choice. |
